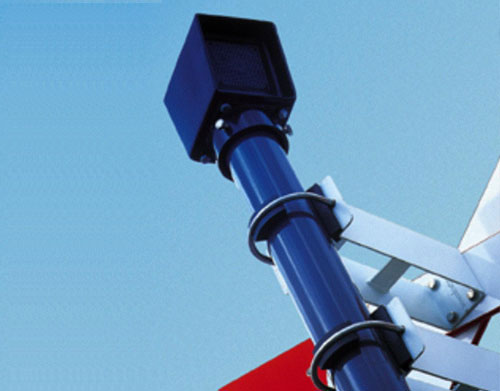

The Alkmaar Railway Signaling electronic bell type EBA
The ARS electronic bell type EBA replaces the electromechanical bell. The bell is used for railway crossings and in systems for closing off bridges. A special feature is that the sound pressure can be adjusted and that the bell has a day/night switch.
The casing of the bell is made of cast aluminium. This makes the bell suitable for all weather conditions, including tropical climates. The electronic bell type EBA can be assembled as a stand-alone construction unit.
The electronic bell type EBA is available in a large variety of voltages. That is why nearly all types of closing systems are equipped with a bell made by ARS.
- Solid and weatherproof casing of cast aluminium
- Available in various supply connection voltages
- Adjustable sound pressure
- Variety of sounds
- Day/night switch for decreasing sound pressure
- High operational reliability
|Colour||:||RAL 9005 (black)|
|Principal dimensions||:||220 x 175 (exclusive mast set-up)|
|Protection factor mechanical||:||IP 44 according to IEC-529|
|Loudspeaker||:||IP 67 according to IEC-529|
|Supply voltage||:||10-18 Vdc / 16-36 Vdc / 20-27 Vac / 230 Vac|
|Sound||:||in accordance with mechanical bell NS (Dutch Railways), 5 beats per second|
|Sound pressure||:||nominal 83dB (A) ±2|
|Night position||:||-6 dB(A) ±2|
|Operational temperature||:||-25 °C and +50 °C, in accordance with IEC 68-2-38|
|Voltage-current pulse test||:||in accordance with IEC 801-5 level 4|
|Insulation value||:||3 kV|
